TM 9-2320-280-34
3-25. ENGINE INST LLATION (6.5 L) (Cont'd)
A
NOTE
Perform steps 103 through 115 for M997A2 vehicles only.
103.

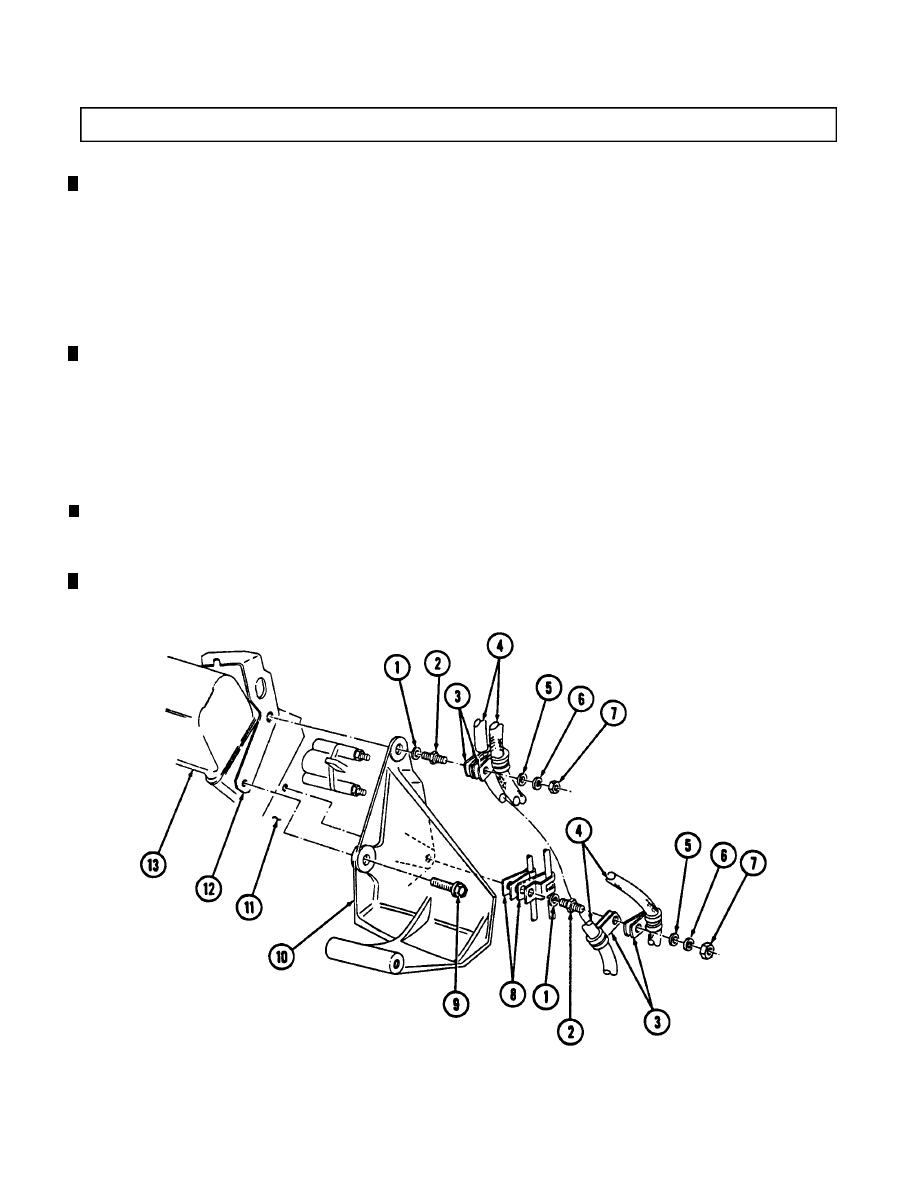

Install brackets (12) and (10) and two fuel line clamps (8) on cylinder head (13) and engine block (11)
with two washers (1) and studs (2). Tighten studs (2) to 40 lb-ft (54 Nm).
104.
Install four clamps (3) and two cables (4) on studs (2) with two washers (5), lockwashers (6), and
nuts (7). Tighten nuts (7) to 40 lb-ft (54 Nm).
105.
Secure brackets (12) and (10) on cylinder head (13) with capscrew (9).
106.
Tighten capscrew (9) to 40 lb-ft (54 Nm).
107.
Install compressor (33) on support bracket (10) with two washers (32), lockwashers (31), and
capscrews (30). Do not tighten capscrews (30).
108.
Position 3/8-inch breaker bar on belt tensioner (37), move tensioner (37) clockwise, and install
drivebelt (29) on pulley (28). Release belt tensioner (37).
109.
Install washer (19) and adjusting bracket (18) onto stud (15) on engine front cover (14) with
washer (20), lockwasher (21), and nut (22). Install adjusting bracket (18) and harness clamp (34) on
110.
Connect two harness leads (35) to two compressor leads (36).
111.
Install clamp (24) on adjusting bracket (18) with screw (23).
112.
Tighten two capscrews (30) to 40 lb-ft (54 Nm).
113.
Install hose (41) on surge tank (39) with clamp (40).
114.
Connect vent line (38) to elbow (45) on air cleaner (44).
115.
Connect vent line (42) to air cleaner fitting (43) on air cleaner (44).
Change 1
